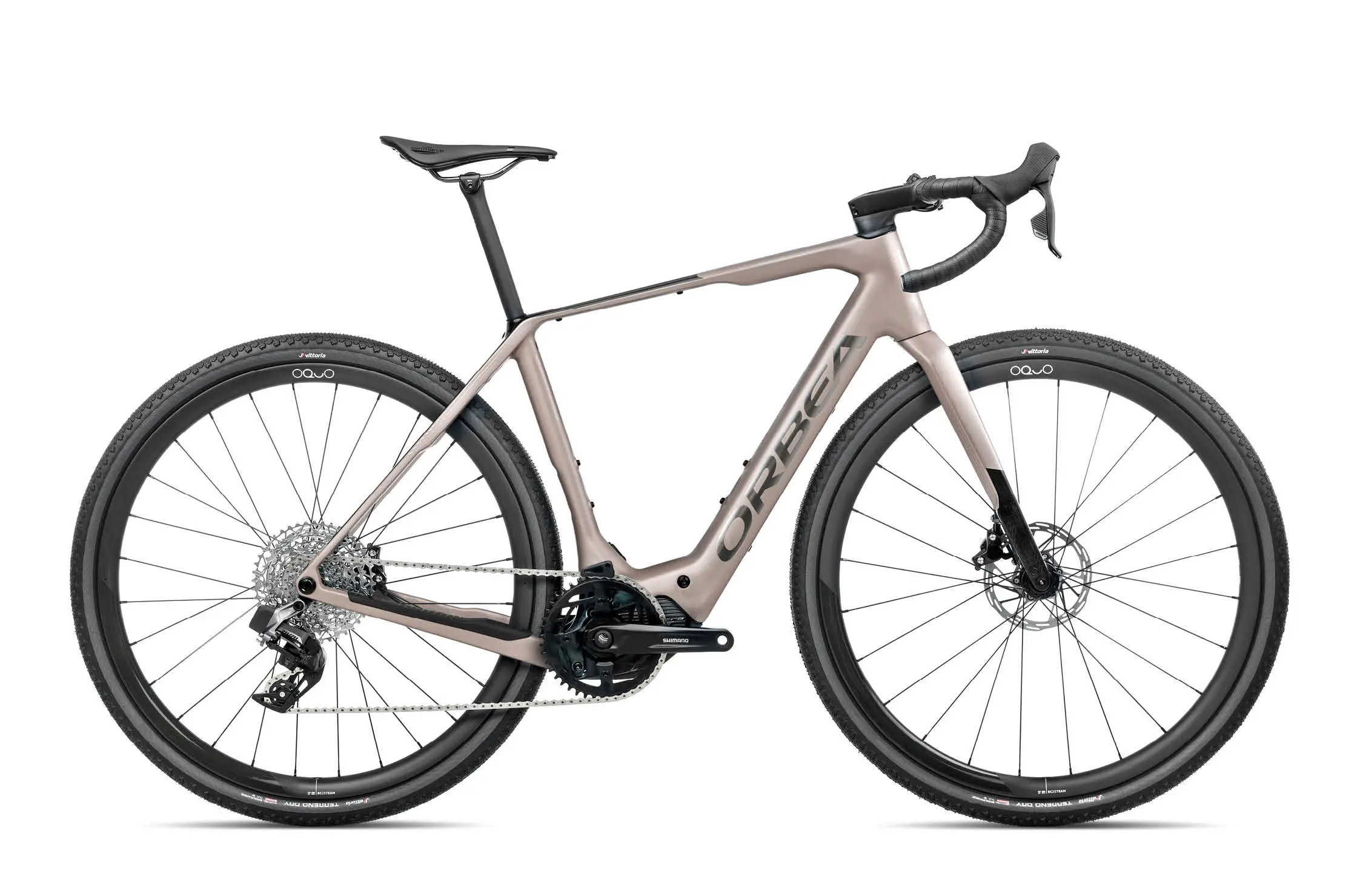

Orbea Denna M31E Carbon Gravel E-Bike

Product image 1
1 / 11
+6

Orbea Denna M31E Carbon Gravel E-Bike

  • Description
  • Features
  • The Orbea Denna ebike isa cutting-edge lightweight gravel e-bike and the Denna M30e is a tough, versatile carbon model with Sram Rival AXS electronic gears. With the powerful Shimano EP801 gravel-tuned motor, modern geometry, and big 50c tire clearance, the Denna is built for adventure, endurance, and versatility.

    • Drive System: Shimano mid-drive
    • Motor: Shimano EP8
    • Battery: Orbea Internal 420Wh
    • Performance: Carbon fork, carbon frame,Sram Rival eTap AXS 12-sp gears
    • Brand: Orbea

Carbon comfort; Gain agility and performance


Tough, lightweight, versatile. The Orbea Denna ebike isa cutting-edge gravel e-bike and the DennaM30e is a tough, versatile carbon model with 12-speed Sram Rival AXS electronic gears and carbon handlebars. Light in weight it rolls on the versatile Oquo Road ControlRC25PRO alloy wheelset. With the powerful Shimano EP801 motor, modern geometry, and big 50c tire clearance, the Denna M30e is built for everything gravel riding can throw at it.

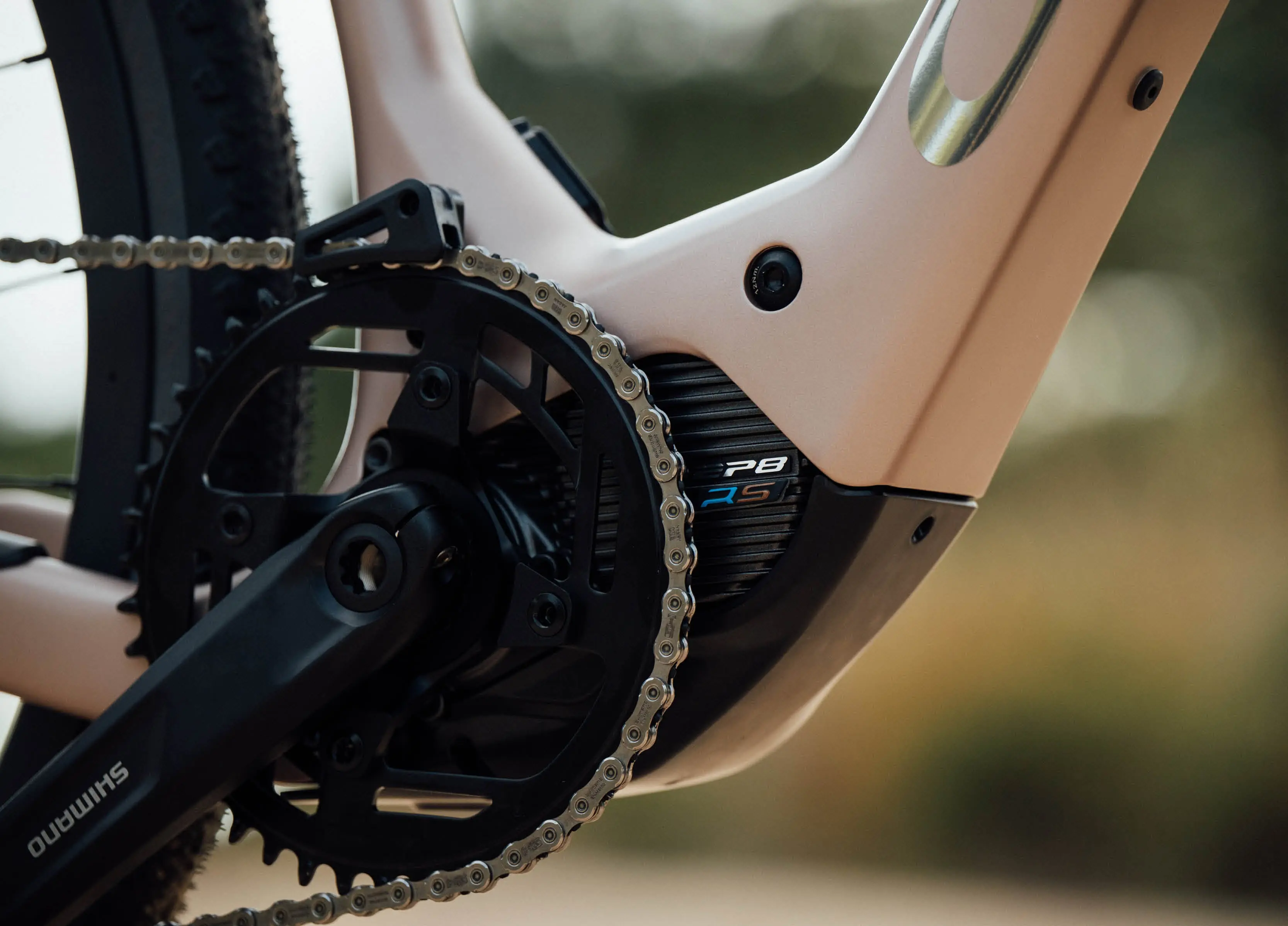

Powerful, natural assistance with long-range battery. The Denna is equipped with Orbea’s custom-tuned Shimano EP801 motor and RS Gen2 RC firmware which provides 85Nm of smooth, natural-feeling power. The Road Control ("RC") tuning ensures the perfect balance of efficiency and assistance for everything from fast pavement to rugged gravel and you can choose between the Gravel and Gravel + profiles depending on where you are riding. The high density 420Wh battery is lightweight and offers up to 3,000m climbing and there is anoptional 210Wh range extender.

Comfort for the long haul. Denna’s OMR carbon frame and fork are designed with flex zones to absorb road chatter while maintaining efficiency. The gravel-optimized geometry, wider tire clearance, balanced weight distribution and carefully selected components ensure a stable, comfortable ride on any surface.

Contact us to pre-order. Customisation options available via Orbea's MYO program. See the Denna M30 if you prefer a more economical version with Shimano GRX gears.


E-Bike Technology


System Shimano
Motor Shimano EP801
Battery Orbea Internal 420Wh
Opt: Range Extender 210Wh
Display n.a
Opt:Shimano EN600 Cycle Computer
Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A


Bike Specifications


Frame Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing

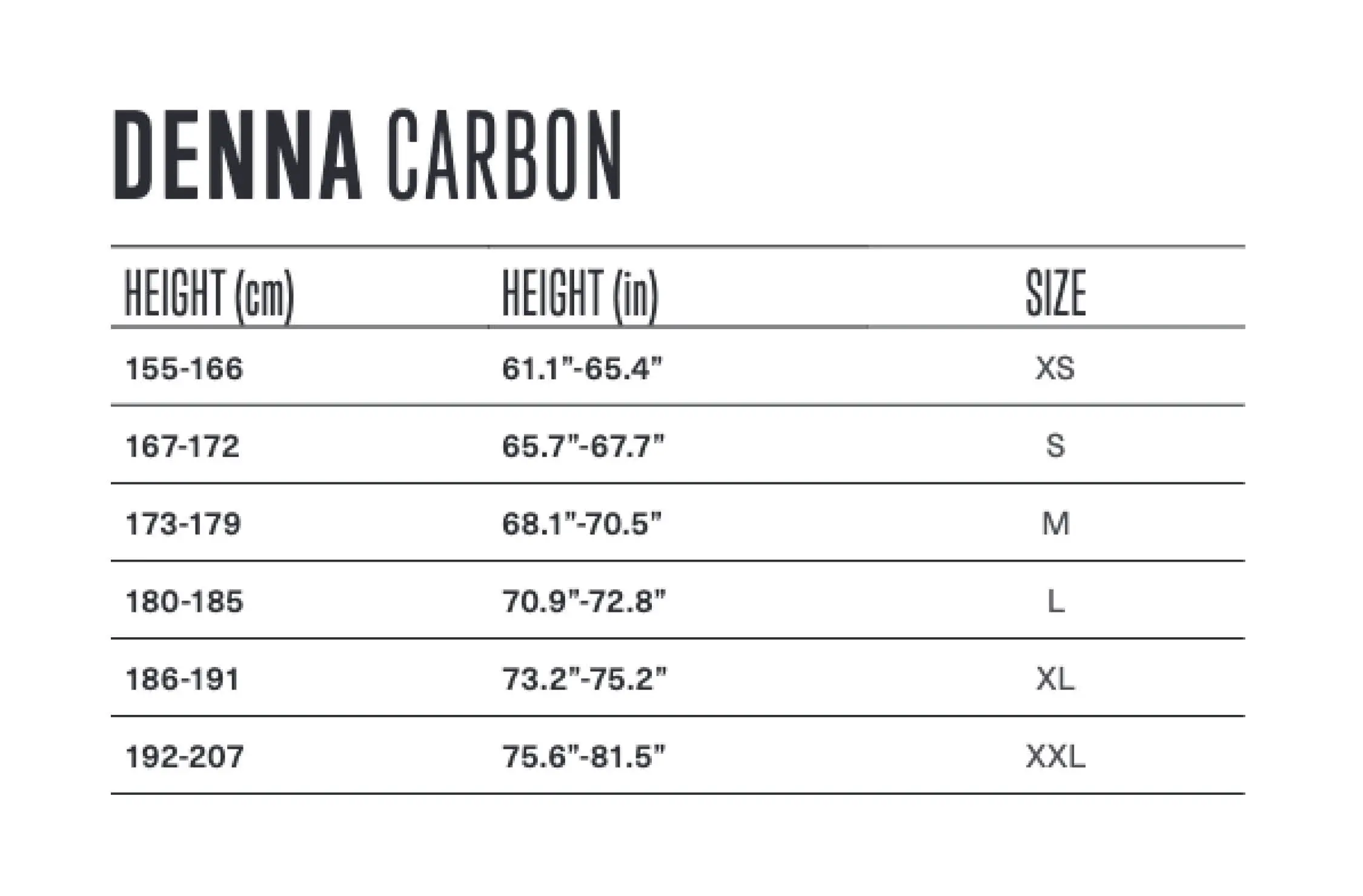

Sizes XS:40.5; S:43.8; M:47.1; L:50.4; XL:53.7
Colours Nickel Matt - Carbon Raw Gloss;Escape Green Gloss - Foggy Matt; MYO
Fork Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
Rear Derailleur Sram Rival XPLR eTAP AXS
Shifters Sram Rival eTap AXS
Cassette Sram XG-1251 XPLR 10-44t 12-Speed
Crank Shimano Steps EM600
Chain Sram Rival 12-Speed
Chainring Alloy EP8 42t
Chain Guide Orbea eBike chainguide
Handlebar Easton EC90 AX Carbon, flare 16º, Di2 internal routing
Handlebar Tape Orbea Anti-Slippery/Shock Proof
Stem
OC Road Performance RP10, -8º
Brakes Sram Rival eTap AXS Hydraulic disc
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle Selle San Marco Shortfit 2.0 Start Up Off Road
Wheels Oquo Road Control RC25PRO
Tyres Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Pedals n.a
Weight
Approx 14.5kg tbc
Lights No
Lock No
Carrier Rack No
Mudguards Opt:Front/rear Apollo Orbit Mudguards 55mm NEG
Kickstand No
